Separation

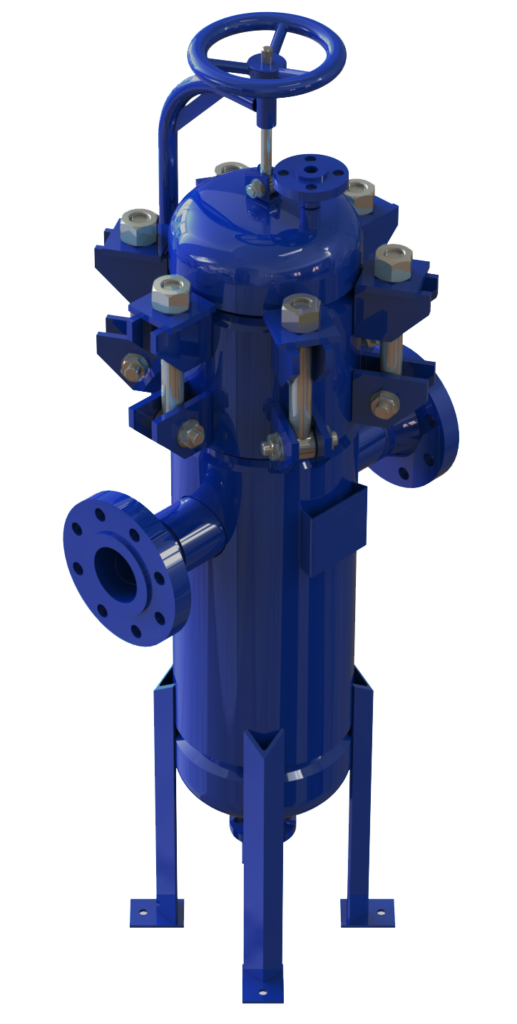

Strainers

AFCO 360 manufactures a wide range of strainers including: simplex strainers, Y strainers, T strainers, basket strainers, duplex strainers and automatic strainers.

  • Continuous removal of suspended solids
  • 316 stainless steel wedge wire internal screen is standard
  • Cleaning accomplished by a spring loaded scraper mechanism
  • Can remove large to small particles from a variety of industrial streams
  • Several control packages are available with local/remote indications and controls
  • Strainer sizes from 4” to 32”
  • Flowrates from 50 gpm to 10,000 gpm

Features:

  • Removable cleanable baskets
  • Basket perforations from 1/32” to 1”
  • Stainless steel wire mesh linings between 20 and 400 mesh can be added
  • Vessels available in carbon steel, 304 stainless steel or 316 stainless steel
  • Swing bolt closure for quick opening
  • Dauit arm used on larger vessels
  • Duplex units allow continuous flow while cleaning
  • 150 psi at 250°F standard operating ratings

Applications:
